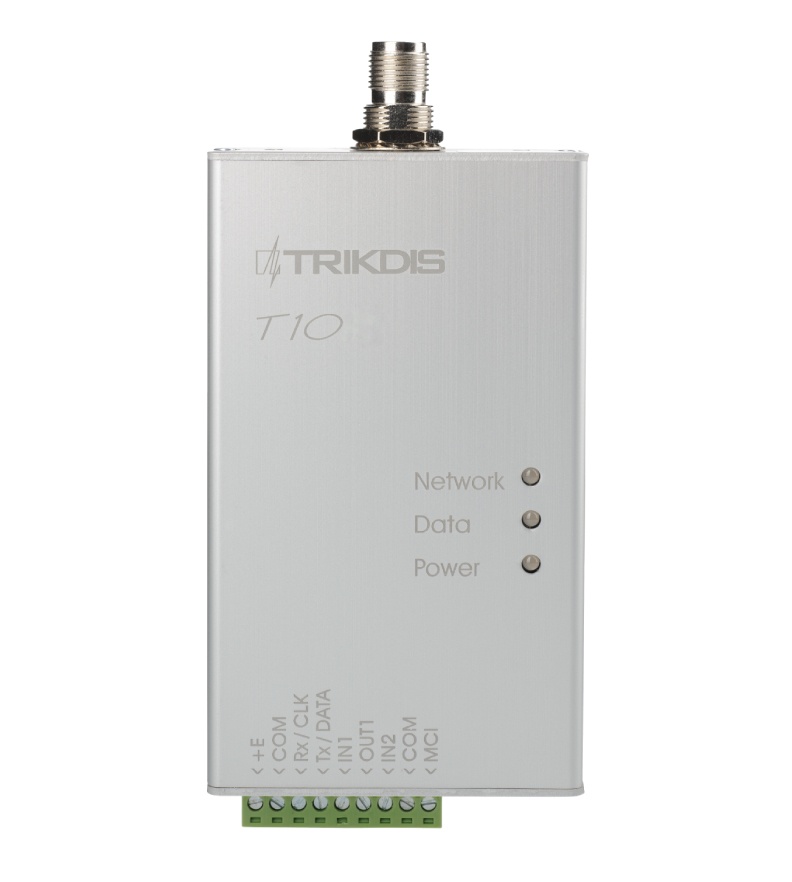

VHF or UHF radio transmitter compatible with Paradox, DSC, Caddx, Pyronix and other manufacturer control panels, reading messages directly from control panel DATA BUS.
Transmitter features:
- Messages are sent in Contact ID codes, transmitting detailed information about event
- Messages are sent in parallel through 2 frequencies of certain radio band
- Messages are sent in 75-95 ms, it gives the opportunity to transmit messages from a big number of objects through one radio frequency
- Encoded message format prevents unauthorized persons from intruding into the network
- Compatible with various radio systems, and can be integrated into existing radio network
- Constant control of connection with ARC through “Ping” messages
- Quick and easy configuration via USB
- Access to transmitter configuration is secured with 2-level password
- Transmitter can be factory locked to one security company
- Metal casing for additional mainboard protection
Specifications
| Inputs (IN1-IN2) | 2 x NC/NO/EOL=2,2 kΩ |
| PGM Output (OUT1) | 1 x OC type, switching 30 V,0,5 A |
| Operating frequency band | 146-174 MHz (VHF) or 430-470 MHz (UHF) |
| Number of operating frequencies | 2 |
| Output power | 1,5 / 5 W |
| Output resistance | 50 Ω |
| Spurious emission | meets the requirements EN 300 113 |
| Transmitting duration | 60-400 ms, depending on the radio system used |
| Alarm message encoding | in ContactID |
| Repeating | 1-9 times |
| Memory | 100 messages |
| Configuration | via USB port |
| Power supply | DC 12,6 V, ± 3 V |
| Current | idle – 60 mA, while transmitting – 800 mA |
| Class of Emission | 12K5 F2D AN (Radio Regulations, ITU, Geneva, 1982) |
| Antenna socket type | TNC connector |
| Operating temperature range | from -20 °C to + 55 °C, when relative humidity 90% at 20ºC |
| Dimensions | 65 x 135 x 25 mm |
| Weight | 0,15 kg |
Data Bus Compatible with
| PARADOX | Spectra series: SP5500, SP6000, SP7000, 1727, 1728, 1738 Magellan series: MG5000, MG5050, DIGIPLEX: EVO48, EVO192, EVOHD, EVO96, NE96 Esprit series: E55, E65, 728ULT, 738ULT |
| DSC | Power Series: PC1616, PC1832, PC1864, PC585, PC1565, PC5020 |
| PYRONIX | Matrix Series: MATRIX 424, MATRIX 832, MATRIX 832+, MATRIX 6, MATRIX 816 |
| UTC Interlogix | NetworX (Caddx) NX-4, NX-6, NX-8 |
| SECOLINK | PAS832 |
Transmitter compatible with other manufacturer control panels when connected with interfaces (C11, C14 or CZ6) or using VHF/UHF modules T10C or T10UC
