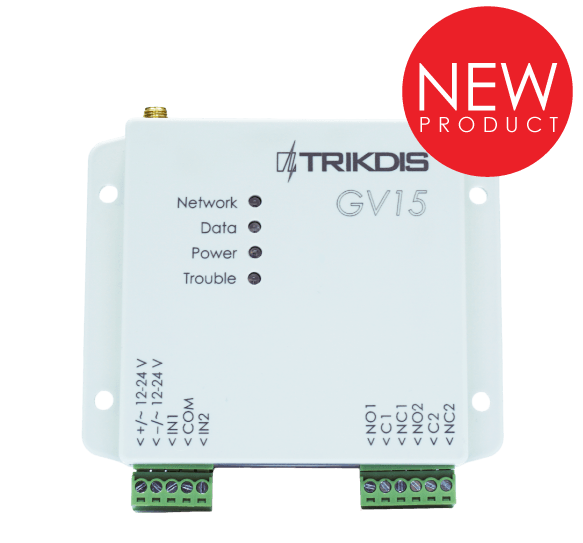

is a remote control device for electro-technical equipment (gate opening or rising, premises heating or ventilation, lawn or greenhouse irrigation, pump, boiler, transporter and other system control). Control commands are transmitted via GSM.
After a call made to the number of the inserted SIM card, the controller checks the caller number, under the set operation mode rejects the call and switches relay contacts. There is a possibility to switch controller relay contacts using SMS message or DTMF commands.
Key features:
- 2 Relays for equipment control;
- 2 inputs, e.g. for the circuit of mounting case lock or gate limit sensor;
- 8 administrators and 1000 user names and their phone numbers;
- Import and export of user phone numbers and user names;
- Customising the preferred switching period of relay contacts;
- Comprehensive controller operation light indication;
- Exceptionally easy to install and
SMS messages:
- Sending SMS messages on entry events;
- Entry event description by individual text;
- Sending SMS confirmations on control comm execution;
- Sending the comprehensive periodic test message
- SMS message distribution to administrators ba on controller event types;
- All operation parameter setting by SMS messag
- SMS commands to receive the lists of administrato and users;
- Controller remote reset;
- Unauthorized call and SMS
Three dial control operation modes:
- All – controller relay contacts may be switched by any caller;
- Users and Administrators – controller relay contacts may be switched by the caller, whose phone number is either on the user or administrator phone number list;
- Administrators only – controller relay contacts may be switched by the caller, whose phone number is on the administrator phone number
Specifications
| GSM modem frequencies | 850 / 900 / 1800 / 1900 MHz |
| Power supply | 12-36 V DC or 12-24 V AC |
| Current usage | Standby – 50 mA
While sending SMS – instantly up to 0,25 A |
| Number of relays | 2 |
| Relay commutated | Direct voltage up to 30 V, current up to 1 A |
| Relay control command | By phone call, SMS or DTMF codes |
|
Switching relay contacts |
Pulse – control command commutates relays for 1-60 sec.
Level – control command commutates relays until the next control command, e.g., until the next call. |
| Memory | Up to 8 administrator names and their phone numbers Up to 1000 user names and their phone numbers |
| Inputs | 2 (IN1 and IN2),
Set for NO (R ≥ 10 kΩ) or NC (R ≤ 0,5 kΩ)type circuits |
| Operating environment | Air temperature from -20 °C to +50 °C, at humidity up to 93% (without condensation) |
| Parameter setting | a) Software ”TrikdisConfig” via USB;
b) Special syntax SMS messages |
| Controller dimensions and weight | 100.6 x 80.7 x 23.5 mm , up to 110g |
